When configuring a well completion system-especially for critical deepwater, high-pressure, high-temperature (HPHT), or highly sour environments-the choice of the safety valve spring material is paramount.
Elgiloy (often referred to under the Chinese standard equivalent 3J21) is a cobalt-nickel-chromium-molybdenum superalloy. It is a premier alternative to Inconel and MP35N when designing high-performance subsurface safety valves (SSSVs) or downhole safety valves (DHSVs).
Here is an engineering overview of how Elgiloy 3J21 performs as a power or compression spring in a well completion safety valve.
The environment downhole is incredibly hostile-characterized by high temperatures, extreme pressures, and corrosive fluids. Inconel X-750 (a precipitation-hardenable nickel-chromium superalloy) is chosen for several key reasons
Material Cross-Reference and Composition
Elgiloy and 3J21 are chemically equivalent and fall under the same material class, typically specified by UNS R30003.
Typical Chemical Composition
- Cobalt (Co): 40% (Provides the high-strength matrix and temperature stability)
- Chromium (Cr): 20% (Provides exceptional oxidation and corrosion resistance)
- Nickel (Ni): 15% (Enhances ductility and toughness)
- Molybdenum (Mo): 7% (Boosts resistance to pitting and crevice corrosion)
- Iron (Fe): Balance (~15-17%)
- Manganese (Mn) & Carbon (C): Trace amounts
Why Elgiloy 3J21 is Used in Safety Valve Springs

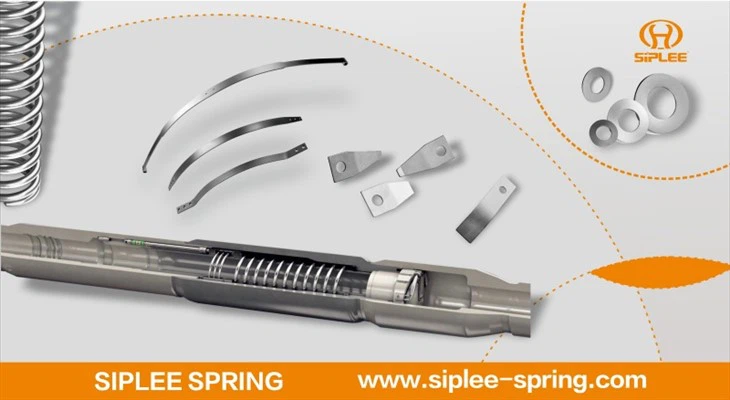

The primary role of the safety valve spring is to provide the massive, fail-safe mechanical force needed to snap the valve's flapper shut the moment hydraulic control line pressure is lost. Elgiloy 3J21 excels here due to three critical engineering traits:
